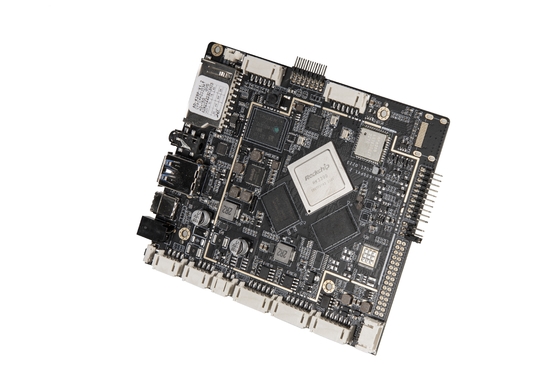

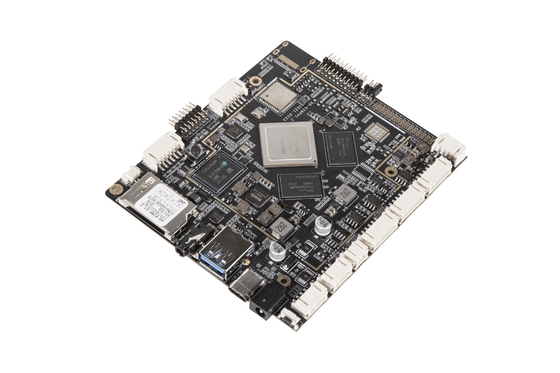

Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support

Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support
Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support
Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support

Grande immagine :  Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support

Dettagli:
Luogo di origine: Cn
Marca: ADW SUNCHIP
Numero di modello: AD-K28P RK3399
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 PC
Prezzo: Negoziabile
Imballaggi particolari: 1pc/sacco di bolle, quantità corretta in un cartone
Tempi di consegna: 1~3 giorni se in magazzino, 15-25 giorni se non in magazzino
Payment Terms: T/T, Western Union, L/C, MoneyGram
Capacità di alimentazione: 1,00,000pcs al mese
Contatto

Rockchip Android Embedded Board RK3399 with Gravity Sensor and Interface Device Support

descrizione
CPU: RK3399 Cortex A72+cortex quad core A53 GPU: Mali-T860
Ram: 4 GB eMMC: 16GB/32GB/64GB facoltativo
Interfaccia di MIPI: risoluzione massima 1920*1080 Dispositivo touch: Interfaccia di I2C, tocco di USB
RJ45: 10/100 Ethernet di sostegno WIFI/BT: Sostegno
Rotazione di immagine: Supporto 0 gradi, 90 gradi, 180 gradi, un manuale da 270 gradi/rotazione automatica, funzione del se Interfaccia di visualizzazione: LVDS/MIPI/EDP
Batteria: Batteria di RTC Ethernet: - Sì, sì.
Garanzia: 1 anno o negoziare

RK3399  Rockchip Android Board​

Product Specifications

  • Hardware specifications
CPU Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Run and save LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  EDP screen interface, maximum resolution 4K
  MIPI screen interface, maximum resolution 1920*1080
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (multi-point capacitive touch)

Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
Network With RJ45 interface, support 10/100 Ethernet
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera
  6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
  2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)
  SD card, maximum support 64GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HDMI 2.0 output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A

Characteristic:

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
  • Multi-channel USB interface, serial port, IO port output.
  • Support 4K video playback and HDMI 2.0 high-definition output.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.
